SolidDna's Command Bar Tutorial

SOLIDWORKS API/VBA Macros
1

Hi,

Here’s a generic main code for starting a new command bar acording to the SolidDna’s tutorial.

The issue is a duplicated command bar.

Have installed the SolidDna nuget.

@PeterBrinkhuis , could you help me?

using AngelSix.SolidDna;

namespace Command_Bar
{
    public class MyAddin : AddInIntegration
    {

        public override void ApplicationStartup() { }

        public override void PreConnectToSolidWorks() { }

        public override void PreLoadPlugIns() { }
    }

    public class MyPlugIn : SolidPlugIn
    {

        public override string AddInTitle => "Eletromei Command Bar";

        public override string AddInDescription => "Custom Eletromei's command bar.";

        public override void ConnectedToSolidWorks()
        {
            var commandBar = AngelSix.SolidDna.SolidWorksEnvironment.Application.CommandManager.CreateCommandGroupAndTabs("Ferramentas Eletromei", new System.Collections.Generic.List<CommandManagerItem>( new[]
            {
                new CommandManagerItem()
                {
                    Name = "Export DXF",
                    Tooltip = "DXF",
                    Hint = "Exportar DXF",
                    VisibleForAssemblies = true,
                    VisibleForDrawings = false,
                    VisibleForParts = true,
                    AddToTab = true,
                    OnClick = () => { }
                }
            }), null);
        }

        public override void DisconnectedFromSolidWorks() { }
    }
}
2

What do you mean with “duplicated command bar”, can you share a screenshot?

We recently deprecated CreateCommandGroupAndTabs and replaced it with CreateCommandTab (for a toolbar tab) and CreateCommandMenu (for a Tools menu). This way, each of the method creates one menu and it only takes arguments that it really needs. Can you try one of these?

3

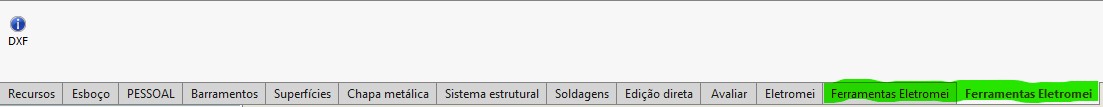

Here’s the screen shot:

Command_bar
Command_bar1103×107 18.6 KB

I can only access CreateCommandGroupAndTabs from AngelSix.SolidDna namespace:

var commandBar = AngelSix.SolidDna.SolidWorksEnvironment.Application.CommandManager…

Installed SolidDna nuget version: 1.0.1.3

4

Got the solution:

Install the CADBooster nuget, follow the tutorial and add latest Solidworks DLL as reference.
