Selecting Edges and Faces Associated with a Hole Feature in the SOLIDWORKS API

SOLIDWORKS API/VBA Macros
1

I’m trying to select all the edges or faces associated with a hole feature. After selecting the feature, the Selection Manager shows that only one object is selected, even though the 3D area appears to highlight the associated edges or faces.

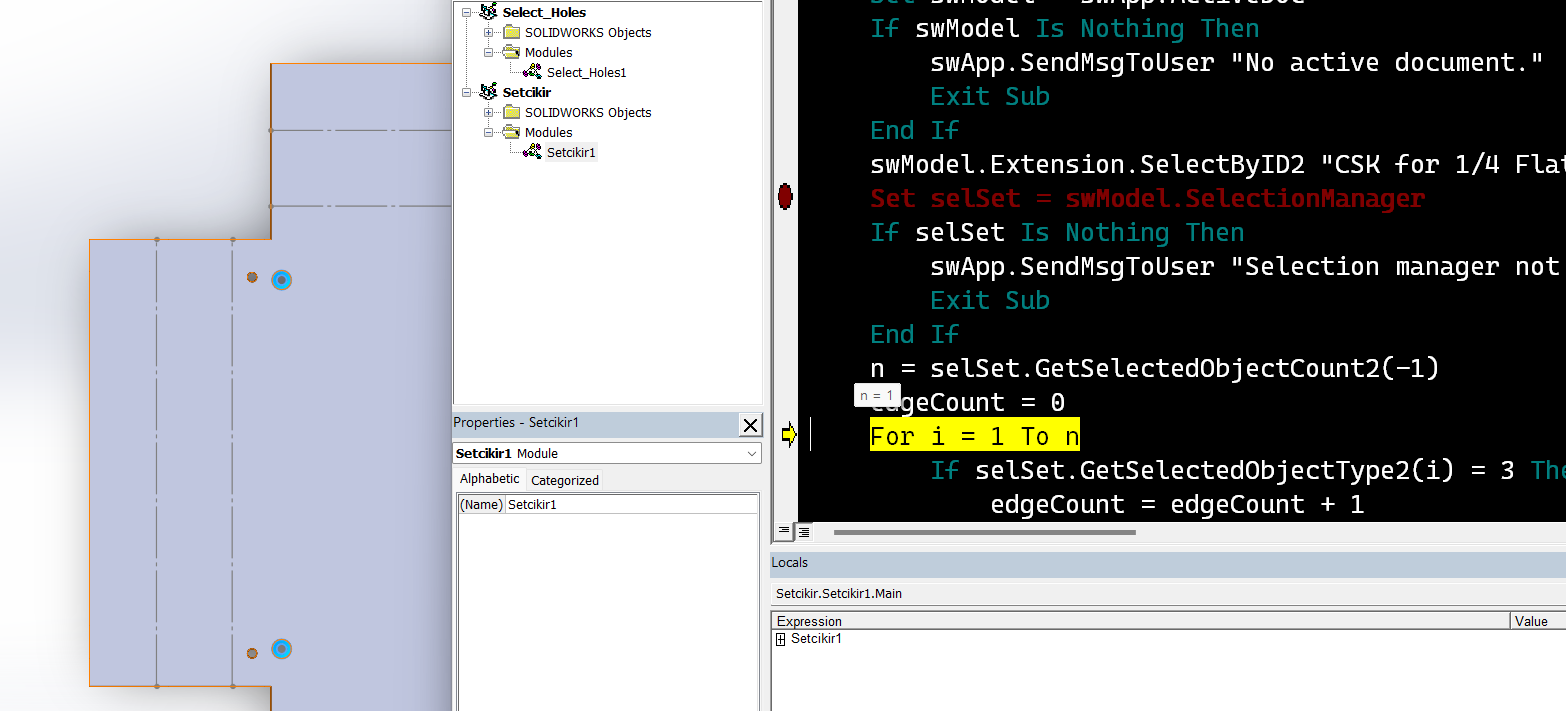

image1566×711 83.2 KB

Option Explicit
Dim swApp As Object
Dim swModel As Object
Dim selSet As Object
Dim i As Long
Dim n As Long
Dim edgeCount As Long
Sub Main()
    Set swApp = Application.SldWorks
    Set swModel = swApp.ActiveDoc
    If swModel Is Nothing Then
        swApp.SendMsgToUser "No active document."
        Exit Sub
    End If
    Set selSet = swModel.SelectionManager
    If selSet Is Nothing Then
        swApp.SendMsgToUser "Selection manager not available."
        Exit Sub
    End If
    n = selSet.GetSelectedObjectCount2(-1)
    edgeCount = 0
    For i = 1 To n
        If selSet.GetSelectedObjectType2(i) = 3 Then
            edgeCount = edgeCount + 1
        End If
    Next i
    swApp.SendMsgToUser "Number of selected edges: " & edgeCount
End Sub
3

I believe you’ll need to get the hole wizard IFeature and get the feature definition as IWizardHoleFeatureData2 for the sketch points used for the hole. IFeature::GetFaces should return the faces that make up the hole wizard geometry.

2

If you select the hole wizard feature from the feature tree, the selection manager count is going to be one only. Am I missing something here?

4

Dim swFeat As SldWorks.Feature

Set swFeat = swSelMgr.GetSelectedObject6(1, -1)
faceArr = swFeat.GetFaces
