Notes area in assembly

SOLIDWORKS API/VBA Macros
1

I’m trying to insert a new notes area into the Annotations → Notes (2D) folder (RMB → Insert notes area) but I didn’t find the member. I’ve already checked a lot of classes but unsuccesful.

This notes area is useful for inserting assembly’s BOM due to the static position and orientation.

1 Like
2

Try the macro recorder first.

3

Already tried.

No command is recorded for the intended action.

4

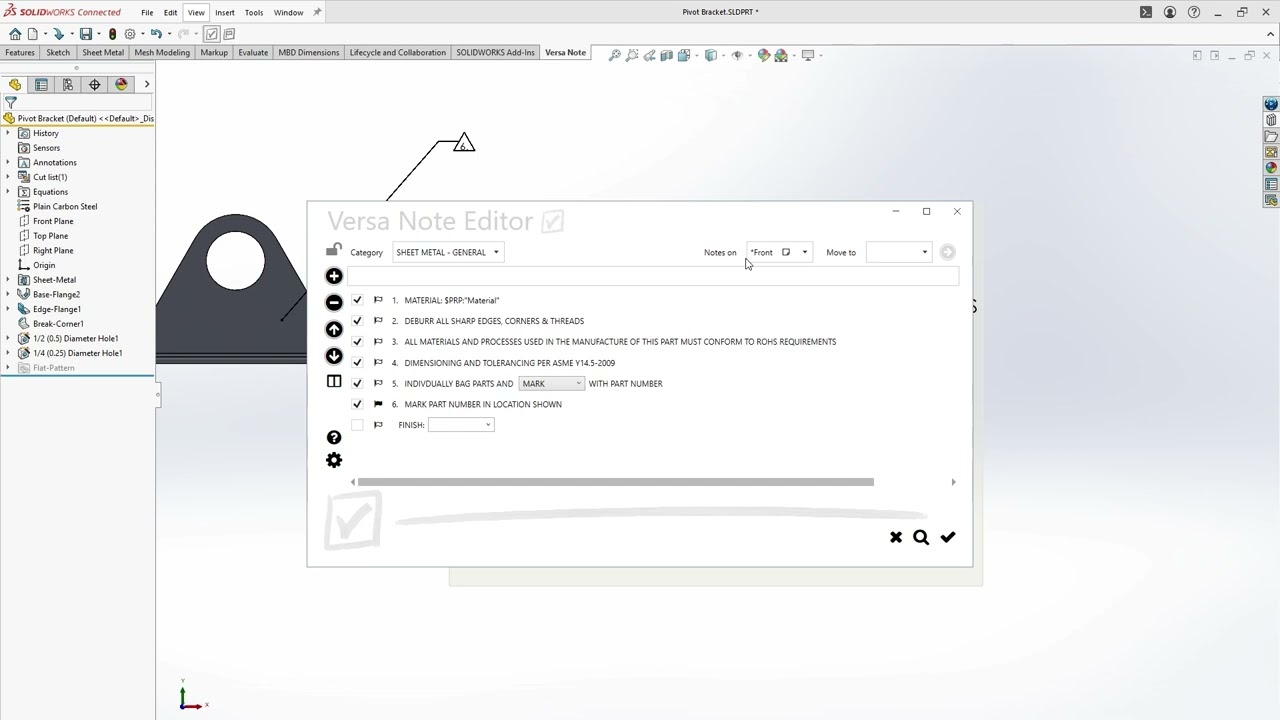

Seems to be possible based on this video, if you haven’t already figured it out.

1 Like
