Hey there,

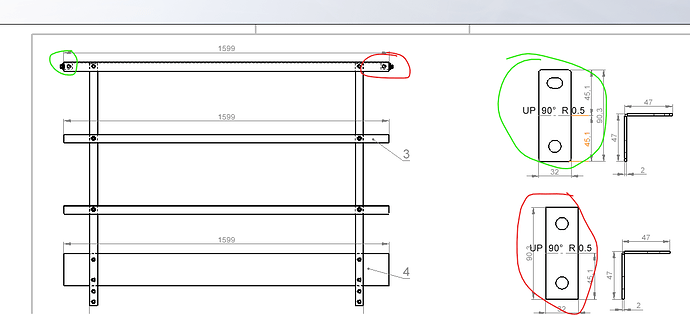

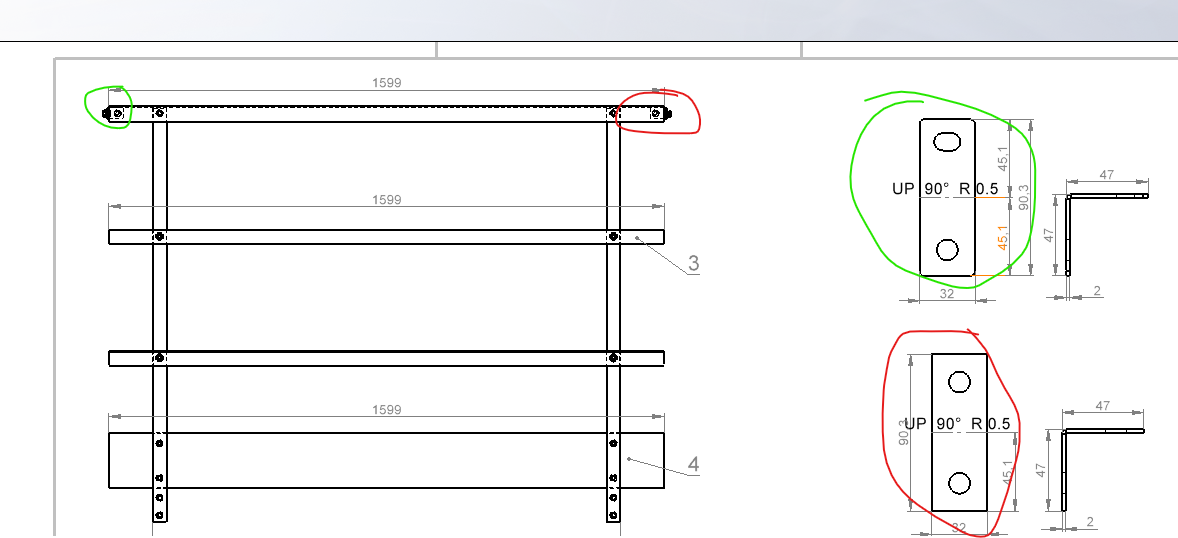

The red and green are two configurations of a part, that belong to the assembly as shown on the drawing. I’m trying to automatically place boom balloons on the assembly view by selecting the part view and then running a macro that gets the part and its configuration of the selected view and then finds this component on the assembly view.
First, I find the component by name and then I compare it by configuration, the problem is that I successfully find both components on the assembly view, but GetID always returns the same value for both parts althou they are set to different configurations in the assembly.
I tried to access the active configuration from the ModelDoc2 object and the ConfigurationManager, but I always got the same result. What am I doing wrong?
This is the part of the code performing this operation:
For i = 0 To UBound(FvComps)
Set FvComp = FvComps(i)
FvComp.SetSuppression2 (swComponentFullyResolved)
Set swFvCompModel = FvComp.GetModelDoc2
If Not swFvCompModel Is Nothing Then
Set swCfgMgr = swFvCompModel.ConfigurationManager
Set swFvComponentConfig = swCfgMgr.ActiveConfiguration
compName1 = swCompModel.GetTitle
compName2 = swFvCompModel.GetTitle
If compName1 = compName2 Then
Set swFvComponentConfig = swFvCompModel.ConfigurationManager.ActiveConfiguration
'Najprej preveri če je isto ime komponente
If swCompConfig.GetID = swFvComponentConfig.GetID Then
Dim RefCong As String
RefCong = swView.ReferencedConfiguration
vEdges = swBoomView.GetVisibleEntities2(FvComp, swViewEntityType_e.swViewEntityType_Edge)
Set swEnt = vEdges(0)
BoomViewName = swBoomView.GetName2
swEnt.Select (False)
Dim myNote2 As SldWorks.Note
Dim myANote2 As SldWorks.Annotation
Dim errors As Long
Dim BomBalloonParams As Object
Set BomBalloonParams = swModel.Extension.CreateBalloonOptions()
Set myNote2 = swModel.Extension.InsertBOMBalloon2(BomBalloonParams)
GoTo cont
End If
Else
End If
End If
Next
Thank you for your help and have a nice day.
Here’s a solution for your testing purposes:
You will get the component referenced config name even on light weight mode.
Option Explicit
Dim swApp As SldWorks.SldWorks
Dim swDrawingDoc As SldWorks.IDrawingDoc
Dim swView As SldWorks.IView
Dim visibleComponents As Variant
Dim visibleComponent As Variant
Dim drawingComponent As SldWorks.IDrawingComponent
Dim myComponent As SldWorks.IComponent2
Sub Main()
Set swApp = Application.SldWorks
Set swDrawingDoc = swApp.IActiveDoc2
'You can change the code block below based on the selected view
'*************************************************************
Set swView = swDrawingDoc.GetFirstView
Do While Not swView Is Nothing
If swView.Type = swDrawingViewTypes_e.swDrawingSheet Then GoTo next_
'Breaking point according to the desired view name
If swView.Name <> "Your view name" Then GoTo next_
visibleComponents = swView.GetVisibleComponents
Exit Do
next_:
Set swView = swView.GetNextView
Loop
'*************************************************************
If swView Is Nothing Then
Debug.Print "Did not find a view"
End
End If
If IsEmpty(visibleComponents) Then
Debug.Print "There's no visible components in this view [ " & swView.Name & " ]"
End
End If
For Each visibleComponent In visibleComponents
Set myComponent = visibleComponent
'First you must cast to the Drawing Component class
Set drawingComponent = myComponent.GetDrawingComponent(swView)
'Then cast back to the Component class
'You can set to another variable name
Set myComponent = drawingComponent.component
'Then you will retrieve the component referenced config name
Debug.Print "Component referenced config name: " & myComponent.ReferencedConfiguration
Next
'Stop
End Sub
1 Like
The code below has been worked for those drawing views:
- Break view
- Crop view
- Broken-out section
- Section view
- Detail view
Option Explicit
Dim swApp As SldWorks.SldWorks
Dim swDrawingDoc As SldWorks.IDrawingDoc
Dim swModelDoc As SldWorks.IModelDoc2
Const viewName As String = "Your drawing view name"
Dim i As Integer
Sub Main()
Set swApp = Application.SldWorks
Set swDrawingDoc = swApp.IActiveDoc2
Set swModelDoc = swApp.IActiveDoc2
Dim view As SldWorks.IView
Set view = swDrawingDoc.GetFirstView
Do
If view.Name <> viewName Then
Set view = view.GetNextView
Else
Exit Do
End If
Loop While Not view Is Nothing
If view Is Nothing Then
Debug.Print "The view [ " & viewName & " ] hasn't been found."
End
End If
Dim visibleComponents As Variant
visibleComponents = view.GetVisibleComponents
If IsEmpty(visibleComponents) Then
Debug.Print "There's no visible components!"
End
End If
For i = 0 To UBound(visibleComponents)
Dim visibleComponent As SldWorks.IComponent2
Set visibleComponent = visibleComponents(i)
Dim visibleEdges As Variant
visibleEdges = view.GetVisibleEntities2(visibleComponent, swViewEntityType_e.swViewEntityType_Edge)
Dim count As Long
count = swModelDoc.Extension.MultiSelect2(visibleEdges, False, Nothing)
' Uncomment if you want to select the drawing component
'**************************************************************
' Dim drawingComponent As SldWorks.IDrawingComponent
' Set drawingComponent = visibleComponent.GetDrawingComponent(view)
'
' Dim ret As Boolean
' ret = drawingComponent.Select(False, Nothing)
'**************************************************************
Debug.Print "Visible edges selected count for component >> " & visibleComponent.GetSelectByIDString & " <<: " & count
'Stop
Next
'Stop
End Sub
1 Like
I suggest you traversing the components within the view and compare their own referenced configurarion name by Component2::ReferencedConfiguration.
