Hi All,
Please let me know the way to get file’s previous state in Solidworks PDM using API. I’m using state change events.
I want to know, what is the previous state of the file?
Hi All,
Please let me know the way to get file’s previous state in Solidworks PDM using API. I’m using state change events.
I want to know, what is the previous state of the file?
/// <summary>
/// Gets the name of the previous file's state.
/// </summary>
/// <param name="file">File</param>
/// <returns></returns>
/// <exception cref="System.ArgumentNullException">File is null.</exception>
/// <exception cref="System.Runtime.InteropServices.COMException">
/// File has state changes history.
/// or
/// File has no history.
/// </exception>

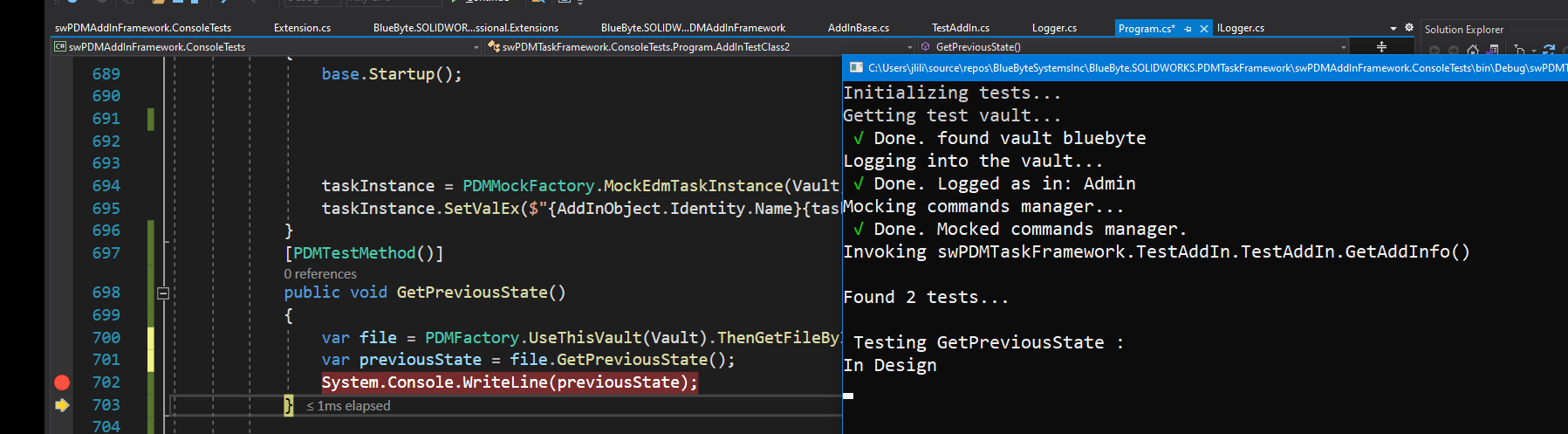

public static string GetPreviousState(this IEdmFile5 file)
{
var stateName = string.Empty;
if (file == null)
throw new ArgumentNullException("file");
var vault = file.Vault as IEdmVault7;
var history = vault.CreateUtility(EdmUtility.EdmUtil_History) as IEdmHistory;
EdmHistoryItem[] historyitems = null;
history.AddFile(file.ID);
history.GetHistory(ref historyitems, (int)EdmHistoryType.Edmhist_FileState);
if (history == null)
throw new COMException("File has state changes history");
if (historyitems.Length == 0)
throw new COMException("File has no history.");
stateName = historyitems[0].moData.mbsStrData1;
var workflow = vault.GetObject(EdmObjectType.EdmObject_Workflow, (file.CurrentState as IEdmState6).WorkflowID) as IEdmWorkflow6;
return stateName.Replace(workflow.Name,"").Trim();
}
