Component Display Line Style - SW Drawing

SOLIDWORKS Drawings and drafting
1

Hi folks,

I having been looking for a property to set the option as shown in the image #2 to an assembly drawing view.

I did not find anything in the ::DrawingComponent:: class.

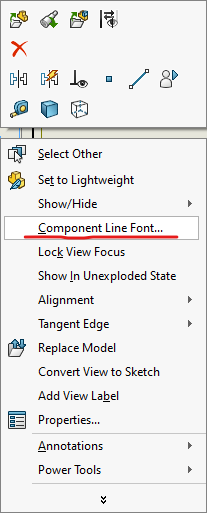

1) Context menu option:

image207×513 14.7 KB

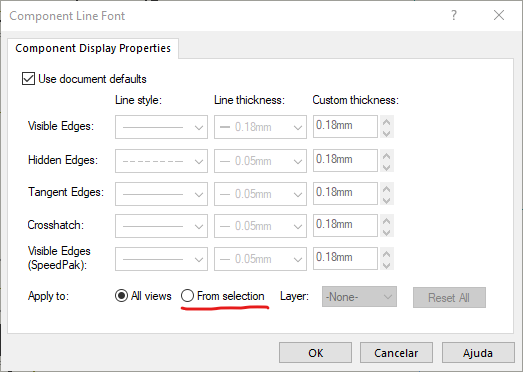

2) Line font properties dialog:

image523×372 10.9 KB

1 Answer

1
2

SetLineStyle
https://help.solidworks.com/2019/english/api/sldworksapi/SolidWorks.Interop.sldworks~SolidWorks.Interop.sldworks.IDrawingComponent~SetLineStyle.html

There's no property to set "Apply to:" in the mentioned method.

 –

Do you want to get the selected line in the engineering drawing?

 –

It's intended to apply the line style for only the selected components. I did not find the "From selection" option in the class' methods nor properties.

 –

Sorry, I can't solve this problem either.

 –
