Activation of tolerance modifier

[Marcel]

Hi,

next question regarding tolerancing

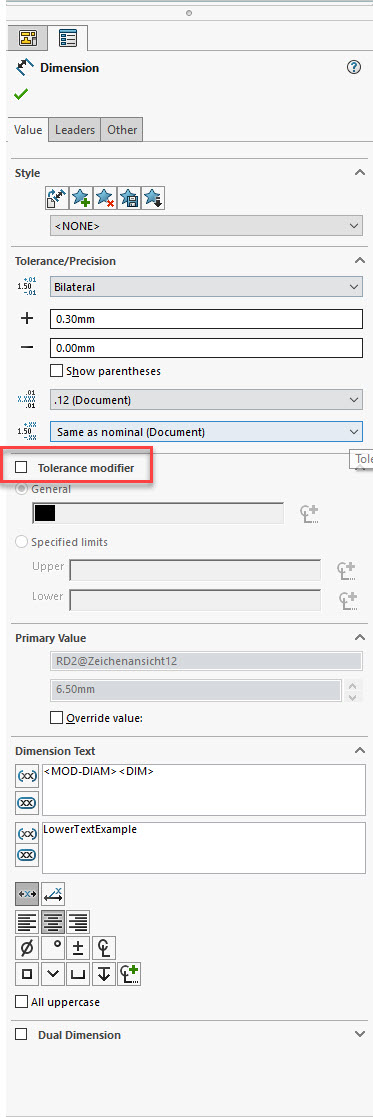

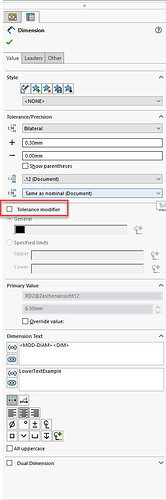

Do you know how to activate the checkbox of the “tolerance modifier” checkbox?
I’ve tried to reach out the specific method with macro recorder and it provides the EditDimensionProperties-method. With that I am able to modify the annotation but not to set the checkbox activated… Did I miss something?

Private Sub SetToleranceModifier(anno As annotation, swDim As Dimension, dd As DisplayDimension, swTolerance As DimensionTolerance)

    Dim result As Boolean
    Dim tolType As Integer
    Dim tolMax As Double
    Dim tolMin As Double
    Dim tolMaxFit As String
    Dim tolMinFit As String
    Dim useDocPrec As Boolean
    Dim precision As Integer
    Dim arrowsIn As Integer
    Dim useDocArrows As Boolean
    Dim arrow1 As Integer
    Dim arrow2 As Integer
    Dim prefixText As String
    Dim suffixText As String
    Dim showValue As Boolean
    Dim calloutText1 As String
    Dim calloutText2 As String
    Dim dimensionLowerText As String
    Dim centerText As Boolean
    Dim configOption As Integer
    Dim configNames As Variant

    tolType = swTolerance.Type

    If tolType = swTolType_e.swTolFIT Or tolType = swTolType_e.swTolFITWITHTOL Or _
    tolType = swTolType_e.swTolFITTOLONLY Then Exit Sub

    result = swTolerance.GetMaxValue2(tolMax)
    result = swTolerance.GetMinValue2(tolMin)

    tolMaxFit = ""
    tolMinFit = ""
    useDocPrec = True
    precision = -1
    arrowsIn = swDimensionArrowsSide_e.swDimArrowsFollowDoc
    useDocArrows = True
    arrow1 = swArrowStyle_e.swCLOSED_ARROWHEAD
    arrow2 = swArrowStyle_e.swCLOSED_ARROWHEAD

    prefixText = dd.GetText(swDimensionTextParts_e.swDimensionTextPrefix)
    suffixText = dd.GetText(swDimensionTextParts_e.swDimensionTextSuffix)
    showValue = True

    calloutText1 = dd.GetText(swDimensionTextParts_e.swDimensionTextCalloutAbove)
    calloutText2 = dd.GetText(swDimensionTextParts_e.swDimensionTextCalloutBelow)
    dimensionLowerText = ""
    centerText = dd.centerText

    configOption = swInConfigurationOpts_e.swThisConfiguration
    configNames = Array("")

    result = m_swModel.extension.EditDimensionProperties(tolType, tolMax, tolMin, tolMaxFit, _
        tolMinFit, useDocPrec, precision, arrowsIn, useDocArrows, arrow1, arrow2, prefixText, _
        suffixText, showValue, calloutText1, calloutText2, dimensionLowerText, centerText, _
        configOption, configNames)


End Sub
